Crystallizer Equipment

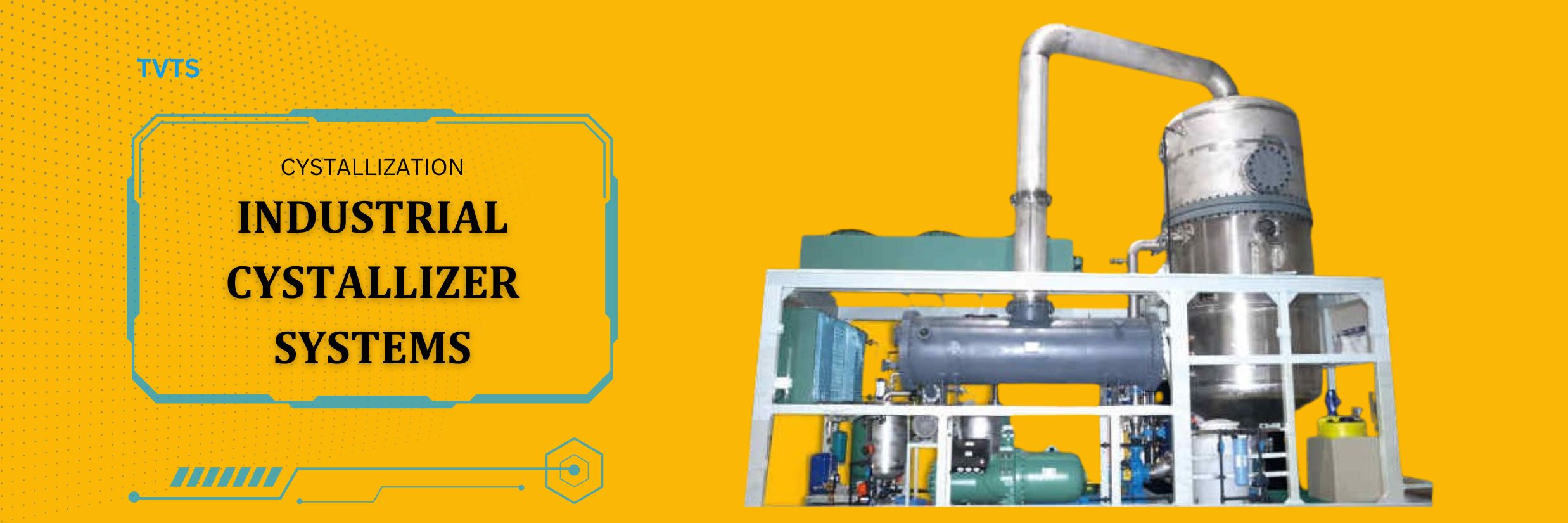

Crystallizers are specialized systems used to produce solid crystals from liquid or solution phases. They play a crucial role in various industrial processes, serving as an advanced separation and purification method.
At Thinh Vuong Technical Services (TVTS), crystallizers are often integrated or upgraded from evaporator systems to achieve both concentration and crystal recovery in one continuous process.
1. Working Principle
The crystallization process begins when a solution reaches its saturation point, causing dissolved particles to form solid crystals.
It typically occurs in two main stages:
- Stage 1 – Nucleation:
Molecular clusters form the initial “nuclei” or seed crystals. - Stage 2 – Crystal Growth:
Once nuclei form, dissolved molecules continue to deposit on them, growing into larger, well-defined crystals.
2. Types of Crystallizers
Several crystallizer designs are applied depending on process needs:
Agitated Crystallizer: Uses mechanical stirring to maintain saturation and enhance crystal formation.
Vacuum Crystallizer: Reduces system pressure to lower boiling point and improve crystallization efficiency at lower temperatures.
Cooling Crystallizer: Cools the solution to decrease solubility and promote crystal formation.
Evaporative Crystallizer: Utilizes heat to evaporate water or solvent, increasing solute concentration to induce crystallization.
Many modern systems are hybrid evaporative crystallizers, upgraded from MEE or MVR evaporators for higher energy efficiency and solid recovery.
3. Industrial Applications
Crystallizers are widely applied in both manufacturing and environmental industries, including:
Food & Beverage: Crystallizing sugar, salt, citric acid, dairy products, and additives.
Chemical: Refining and concentrating compounds such as sodium chloride, sulfuric acid, and inorganic salts.
Pharmaceutical: Producing high-purity active ingredients and intermediates.
Energy: Extracting salts from seawater or brine in desalination systems.
Mining & Metallurgy: Recovering minerals and metals such as copper and zinc from process solutions.
4. Advantages
High separation and purity efficiency – produces crystals with consistent quality.
Energy saving – advanced systems recover and reuse heat from evaporation or cooling processes.
Controllable crystal size – operators can adjust parameters such as temperature, agitation, and evaporation rate.
5. Limitations & Challenges
High capital cost: Due to complex design and energy requirements.
Maintenance complexity: Precision control and moving parts demand skilled operation and regular maintenance.
6. Key Factors Affecting Crystallization
Parameter Impact on Process
Temperature Determines solubility and crystallization rate
Evaporation rate Higher rates accelerate crystallization
Agitation speed Influences crystal size and uniformity
Degree of saturation Crystallization occurs when saturation or supersaturation is reached
